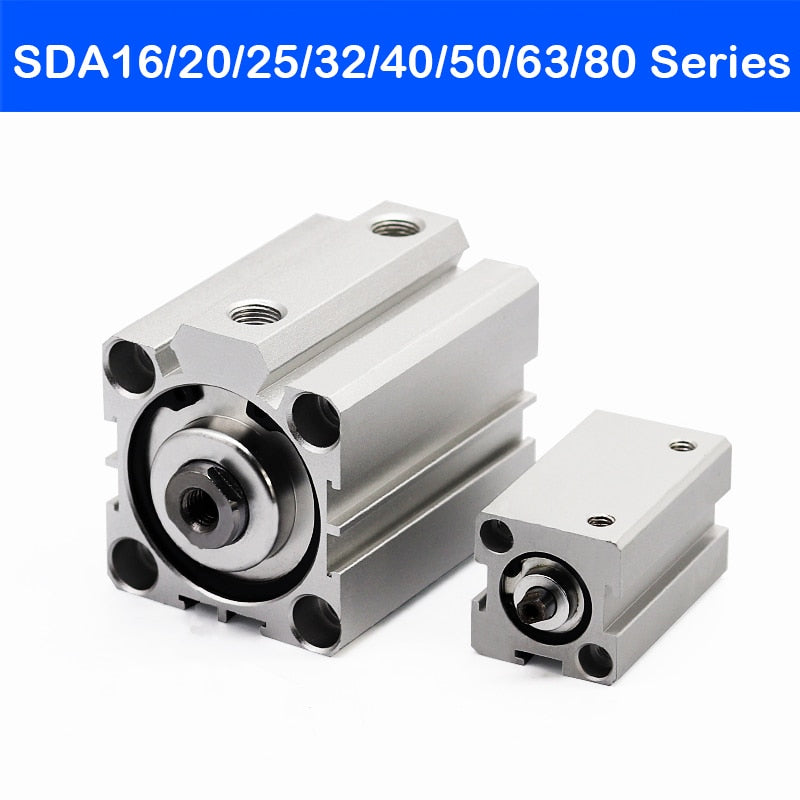

air Cylinder SDA16/20/25/32/40/50/63/80mm Boreseries Pneumatic Compact 5 10 15 20 25 30 35 40 45 50mm Stroke
air Cylinder SDA16/20/25/32/40/50/63/80mm Boreseries Pneumatic Compact 5 10 15 20 25 30 35 40 45 50mm Stroke
air Cylinder SDA16/20/25/32/40/50/63/80mm Boreseries Pneumatic Compact 5 10 15 20 25 30 35 40 45 50mm Stroke
air Cylinder SDA16/20/25/32/40/50/63/80mm Boreseries Pneumatic Compact 5 10 15 20 25 30 35 40 45 50mm Stroke

air Cylinder SDA16/20/25/32/40/50/63/80mm Boreseries Pneumatic Compact 5 10 15 20 25 30 35 40 45 50mm Stroke

Tax included.

Certification: NONE
Origin: CN(Origin)
Type: Cylinder
Model Number: SDA16/20/25/32/40/50/63/80mm
Product Name: Compact Cylinder
Action Type: Double Acting
Fluid: Air(To Be Filterse By 40um Filter Element)
Operatin Pressure: 0.2-0.8Mpa
Bore Size: SDA16/20/25/32/40/50/63/80mm
Stroke: 5-50mm
Proof Pressure: 1.32Mpa
Material: Aluminium alloy
Cushion Type: Bumper
Stroke Tolerance: ±1
Speed Range mm/s: 30-500
Port Size: M5x0.8 1/8" 1/4" 3/8"
