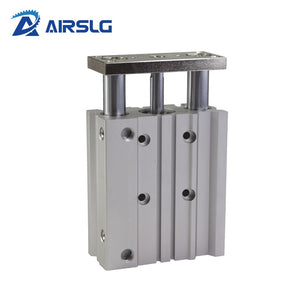

Compact guide cylinder Thin Three axis air pneumatic cylinder with guide rod MGPM bore 12 16mm stroke 10-150mm MGPM12-20Z 16-30Z

Compact guide cylinder Thin Three axis air pneumatic cylinder with guide rod MGPM bore 12 16mm stroke 10-150mm MGPM12-20Z 16-30Z

  • $72.00
    Unit price per
Tax included.


Brand Name: AIRSLG
Type: Cylinder
Model Number: MGPM16-50Z
MGPM: Slide bearing
MGPL: Ball bushing
Action: Double acting
Fluid: Air
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Ambient and fluid temperature: -10-60
Piston speed: 50 to 500 mm/s
Cushion: Rubber bumper on both ends
Port: M5
XC8: Adjustable stroke cylinder/Adjustable extension type
XC9: Adjustable stroke cylinder/Adjustable retraction type
